Wall Mounts & Mobile Stands for Interactive Flat Panels
Fixed wall mounts and rolling floor stands engineered for 32"–120" interactive flat panels — up to 300 kg, VESA to 900 × 600, lockable casters. Specified, sized and documented for system integrators building classroom and meeting-room projects.
Two ways to hang the panel — one supplier

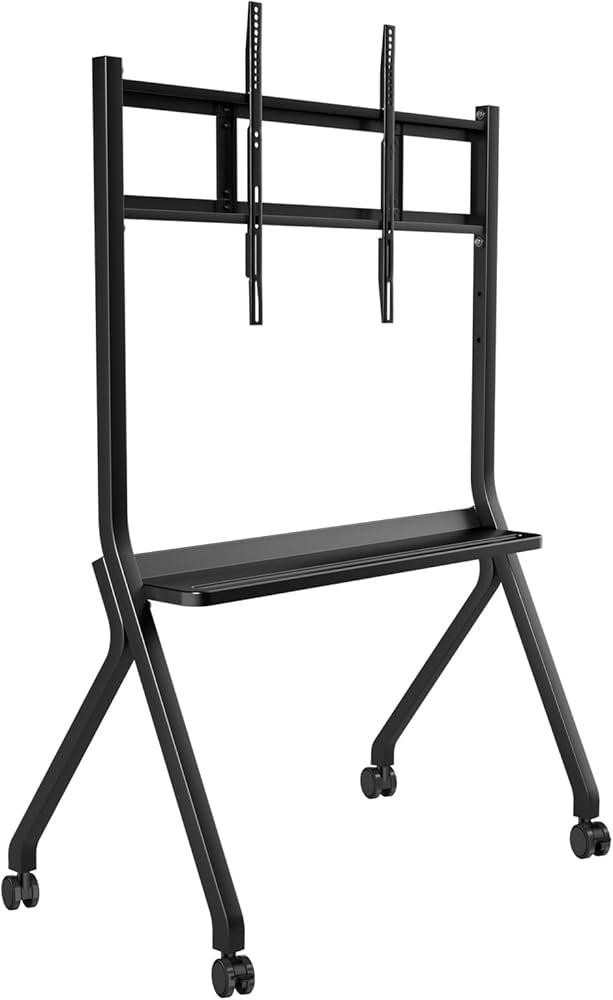

Tralltech supplies two mount families for its interactive flat panels. The T-MNT-WL wall mount range fixes a panel flat to the wall for permanent classroom and meeting-room installs, from compact 26"–65" rooms up to large-format 110" displays. The T-MNT-FL mobile stand range puts the panel on a rolling, lockable base — a height-set rolling cart or an A-frame trolley — for rooms that share one screen or need to move it between spaces.
Both are cold-rolled steel, match the VESA pattern of the matching T-IFP panel, and ship as part of a complete room BOM. Sourcing the mount from the same maker as the panel means one warranty conversation and a guaranteed fit.
- Matched to the T-IFP panelVESA pattern and load rating chosen to fit the display they ship with.
- Rated up to 300 kgHeavy-gauge cold-rolled steel for large-format 98"–120" panels.
- Lockable casters on mobile standsRoll between rooms, then lock in place — no tools to move the screen.
- Set viewing heightMount height positioned for seated and standing viewing in teaching rooms.
- Built-in device shelfMobile stands include a shelf for OPS, mini-PC, camera or document camera.
- Tender-ready documentationLoad ratings, VESA and dimensions supplied for spec sheets and BOMs.
T-MNT range — load & fit by model
| Display size | Max load | Mounting holes | Wall gap | Steel plate |
|---|---|---|---|---|
| 26"–65" | 50 kg | up to 400 × 400 | 25 mm | 1.5 mm |
| 65" (wide-format) | 50 kg | 200×200 to 600×600 | 25 mm | 1.5 mm |
| 75"–86" | 150 kg | 800 × 600 | 30 mm | 2.0 mm |
| 96"–100" | 200 kg | up to 900 × 600 | 30 mm | 2.2 mm |
| 98"–110" | 300 kg | large-format | 30 mm | 2.6 mm |
Fixed wall mounts hold the panel flat against the wall with a low profile (25–30 mm gap). Heavier-gauge plate is used as panel size and weight increase. Confirm the exact mounting-hole pattern against your panel model before ordering.
| Type | Display size | Max load | Mounting holes | Net weight |
|---|---|---|---|---|
| Rolling cart | 32"–65" | 100 kg | 600 × 400 | 17 kg |
| Rolling cart | 75"–86" | 175 kg | 900 × 600 | 30 kg |
| Rolling cart | 98"–100" | 225 kg | 1100 × 600 | 42 kg |
| A-frame trolley | 55"–65" | 150 kg | 900 × 600 | 23 kg |
| A-frame trolley | 75"–86" | 160 kg | 1100 × 600 | 25.5 kg |
| A-frame trolley | 98"–120" | 300 kg | 1600 × 1000 | 38 kg |
All mobile stands ride on lockable casters and include a device shelf. The rolling-cart style has a boxed lower shelf; the A-frame trolley is a lighter open frame. Both set the panel at a fixed teaching height.
How to choose the right mount
| Permanent install? | Wall mount (T-MNT-WL) |
|---|---|
| Shared / movable screen? | Mobile stand (T-MNT-FL) |
| Step 1 | Confirm the panel's weight |
| Step 2 | Confirm the panel's VESA / hole pattern |
| Step 3 | Pick the model rated above that weight |
| Wall condition | Tell us the wall type — we advise on fixings |
A mount is a safety item — always select by the actual display weight and mounting-hole pattern, not by screen size alone. Send us the panel model and we'll confirm the correct mount and VESA before you order.

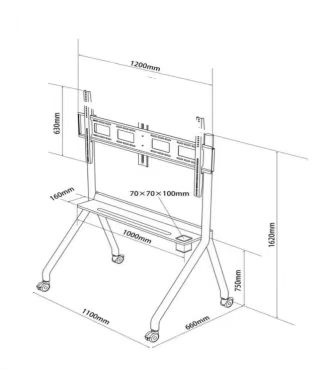

Mobile stand dimensions
A representative large-format mobile stand. Other classes scale to their display size — request the exact drawing for the model you need.
Key dimensions
| Crossbar width | ~1200 mm |
|---|---|
| VESA height | 610 mm |
| Steel beam | 70 × 70 × 100 mm |
| Shelf width | 1000 mm |
| Base width | 1100 mm |
| Base depth | 660 mm |
| Overall height | ~1620 mm |
| Casters | 75 mm, lockable |
Build the full room around the mount
A mount is one line of the room BOM. These products complete a smart classroom or meeting-room deployment alongside it.
Mounts inside a Tralltech solution
We supply complete solutions to system integrators, not single parts. See how the panel, mount and the rest of the room come together.
Smart Classroom Solution
Wall-mounted in fixed classrooms, or on a rolling stand for shared and flexible rooms — three configuration levels built around the T-IFP panel.
Explore Smart Classroom →Video Conference Room Solution
A mobile stand turns any meeting space into a video room you can roll where it's needed — Zoom- and Teams-ready.
Explore Conference Room →Frequently asked questions
Q.Should I choose a wall mount or a mobile stand for an interactive flat panel?
Use a wall mount (T-MNT-WL) when the panel stays in one room permanently — it's the lowest-profile, lowest-cost option for fixed classrooms and meeting rooms. Use a mobile stand (T-MNT-FL) when one screen is shared between rooms or needs to move, or when wall fixing isn't practical. Both come in load ratings matched to panel size.
Q.What VESA pattern do I need for an 86" or 98" interactive flat panel?
Larger panels use larger mounting-hole patterns — typically around 800 × 600 mm for 75"–86" and up to 900 × 600 mm or larger for 98"–110". Rather than guess, tell us the exact panel model and we'll confirm the correct VESA and the matching T-MNT mount before you order.
Q.Can these mounts hold a 110" or 120" interactive display?
Yes. The heavy-gauge wall mount is rated to 300 kg for large-format 98"–110" panels, and the A-frame mobile trolley is rated to 300 kg for 98"–120" displays. Because these are safety-critical, always confirm the actual panel weight against the mount rating with our engineers.
Q.Do the mobile stands have a shelf and lockable wheels?
Yes. Every T-MNT-FL mobile stand rolls on lockable casters and includes a device shelf for an OPS module, mini-PC, camera or document camera. You roll the panel into position and lock the wheels — no tools required.
Q.Do mounts ship with the interactive flat panel, or separately?
The mount is a separate line item, so you choose the right wall mount or mobile stand for each room. We supply it from the same factory as the panel, so the VESA fit is guaranteed and there's one warranty conversation. It's quoted together as part of your room BOM.
Q.Do you sell mounts directly to schools or end users?
No. We only supply system integrators and project companies, and we never contact your end clients or sell to them directly. We provide the equipment, the engineering support and the documentation; you keep the client relationship. OEM / branded supply is available across the product line.
Get the right mount for your panel
Send us the panel model and the room. We confirm the correct wall mount or mobile stand, the VESA fit and the load rating — and reply within 24 hours.
