T-UPS-3KT · Online UPS · T-PWR Series

3000 VA Online UPS for Smart Classrooms & AV Systems

True double-conversion · pure sine wave · 0 ms transfer · 110–300 V input. Clean, uninterrupted power for interactive displays, OPS modules, recording systems and VR labs. Designed and built to meet CE / IEC 62040 requirements.

Get a Quote & Spec Sheet See the Smart Classroom Solution
CE · IEC 62040 Pure Sine Wave 0 ms Transfer OEM Available

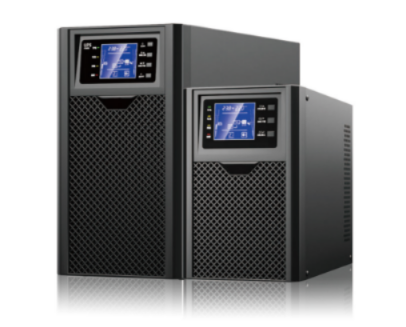

Tralltech T-UPS-3KT 3000 VA online double-conversion UPS for smart classrooms and AV systems — tower form factor
3 kVA Capacity
2700 W Output Power
0 ms Transfer Time
Online Double-Conversion
6+1 IEC C13 + C19
1 yr Warranty*
Product Overview

Project-Grade Power Protection for AV Rooms

The T-UPS-3KT is Tralltech's 3000 VA online UPS — designed for system integrators who need to keep an interactive classroom, conference room or VR lab running through unstable mains. Unlike a cheaper line-interactive unit, it rebuilds the output as a clean pure sine wave with a 0 ms transfer time, so interactive panels, OPS PCs and recording systems never see a gap or a dirty waveform.

With a wide 110–300 V input, AVR ±1% and cold-start capability, it stays stable behind generators and weak grids — the conditions our integrator partners deploy in. Standard IEC outlets (6 × C13 + 1 × C19) and LCD monitoring with RS-232 / USB make it drop straight into a structured BOM. It ships designed and built to meet CE / IEC 62040 requirements, with documentation on request.

⚙ Sizing note for integrators: Battery runtime scales with the connected load — the internal VRLA batteries are sized for ride-through during outages and clean, safe shutdown, not for hours of continuous operation. Send us your device list and we'll confirm headroom and runtime for the actual room.

Core Features

Built for integrators who specify complete classroom and conference-room systems.

  • True online double-conversion — 0 ms transfer time, full-time power protection (not a line-interactive compromise)
  • Pure sine wave output — safe for VR-ready workstations, interactive screens and sensitive lab equipment
  • 3000 VA / 2700 W, 110–300 V input — rides through unstable mains and works with generators
  • AVR ±1% & cold start — tight voltage regulation; starts from battery with no mains present
  • Standard IEC outlets — 6 × C13 + 1 × C19 output, C20 input — clean lab/rack cabling, no adapters
  • Adjustable charging 1–4 A — fast recharge in under 3 hours at maximum charging current
  • LCD + RS-232 / USB monitoring — optional SNMP / RS485 for centralised network management
  • User-replaceable VRLA batteries — maintenance-free sealed lead-acid modules, easy field service
🔒 We never contact your end clients — your project stays yours.
Technical Specifications

Full Specification Sheet — T-UPS-3KT

Complete specifications for engineering proposals, tender documentation and BOM preparation. Request the PDF data sheet using the link below, or use the tabs for quick reference.

General
UPS TypeTrue double-conversion online (high-frequency)
Capacity3000 VA / 2700 W
PhaseSingle-phase (L + N + PE)
Form FactorTower / floor standing
Output WaveformPure sine wave
AVRAutomatic Voltage Regulation, ±1%
Transfer Time0 ms
Cold StartSupported
EfficiencyMains mode 95.5% / Battery mode 89.5%
Power FactorOutput PF 0.9; input PF ≥ 0.99
Input
Input Voltage200 / 208 / 220 / 230 / 240 VAC
Voltage Range110 – 300 VAC
Input Frequency44 – 66 Hz (auto sensing)
Input ConnectionIEC 320 C20
Output
Output Voltage208 / 220 / 230 / 240 VAC (configurable)
Output Frequency44 – 66 Hz synchronous; 50 / 60 Hz battery mode
Output Ports (low)6 × IEC 320 C13
Output Ports (high)1 × IEC 320 C19
Overload110–130% 10 min; 130–150% 30 s (mains mode)
C20 input and C13/C19 outputs map directly to standard rack and lab cabling — no ad-hoc adapters in the BOM.
Battery & Runtime
Battery TypeMaintenance-free sealed lead-acid (VRLA)
Configuration12 V / 7 Ah × 6
Charging Current1 – 4 A adjustable
Recharge Time< 3 hours (at maximum charging current)
Battery ServiceUser-replaceable modules
Runtime depends on the connected load. Sized for ride-through and safe shutdown during outages — ask our engineers for a runtime figure against your actual device list.
Communication & Management
DisplayMultifunctional LCD (load, battery, mains, fault)
InterfaceRS-232 + USB (optional AS400 / RS485 / SNMP)
SoftwareMonitoring software — Windows / Linux / Mac
AlarmsAudible alerts: low battery, overload, fault
Add the optional SNMP / RS485 card for centralised power monitoring across multiple rooms or a campus rack.
Environment & Physical
Operating Temperature0 – 40 °C
Operating Humidity20 – 95% non-condensing
Noise Level< 50 dBA @ 1 m
Dimensions (H × W × D)425 × 192 × 320 mm
Weight≈ 22 kg
Compliance & Warranty
Safety / EMCDesigned and built to meet CE; EN/IEC 62040-1; EN/IEC 62040-2 requirements (documentation on request)
Warranty1 year (battery 1 year), extendable
Box Contents
Included in box1 × T-UPS-3KT · 1 × Input/power cable · 1 × USB cable · Monitoring software · 1 × User manual
Compliance scope and validity are confirmed in writing per order.
Pairs With & Protects

What the T-UPS-3KT Keeps Running

The T-UPS-3KT is the power layer of a complete smart classroom or video conference room system. It protects the equipment below from outages, brownouts and surges. System integrators can add it to any room BOM.

T-IFP Series
Interactive Flat Panels
55"–110" displays — protected from hard power cuts that reset the board mid-lesson.
T-CPU-i5 / i7
OPS Computing Modules
Windows-inside modules — clean shutdown prevents OPS storage corruption.
T-PDM Series
Smart Podium
Teacher control station — keeps the lectern PC and screen alive through outages.
T-VID Series
Cameras & Recording
PTZ cameras and recording systems — power stability protects in-progress recordings.
Part of a Complete Solution

Where Power Backup Fits in the Room

Tralltech is a smart classroom and video conferencing system manufacturer — we don't just ship the UPS. For system integrators we design the room topology, size the power layer against the real load, write it into the tender specs alongside the displays and recording system, and prepare the full BOM. The complete three-level deployment guide lives on the solution page below.

See how power backup fits a complete deployment

Three configuration levels, system topology, audio wiring and a downloadable BOM — built for system integrators.

Explore the Smart Classroom Solution Talk to Sales

For meeting rooms and boardrooms, the T-UPS-3KT also protects our video conference room solution. Need it under your own brand? See OEM & ODM.

Frequently Asked Questions

T-UPS-3KT — Questions from System Integrators

What size UPS do I need for an interactive flat panel classroom?
It depends on what's connected. A single interactive panel with an OPS PC and active audio usually draws a few hundred watts, so the 2700 W T-UPS-3KT comfortably protects one well-equipped room or a small cluster that includes a recording unit. Share your device list and our engineers will confirm the load headroom for your specific BOM.
Why choose an online double-conversion UPS instead of a line-interactive one?
Online double-conversion rebuilds the output as a clean pure sine wave with a 0 ms transfer time, so sensitive AV gear — OPS PCs, recording systems, VR workstations — never sees a gap or a dirty waveform. Cheaper line-interactive units have a small transfer delay and approximated waveforms that can stress this equipment over time. For classroom and lab equipment, online is the safer specification.
Can the T-UPS-3KT run on a generator or unstable mains?
Yes. It accepts a wide 110–300 V input with auto-sensing 44–66 Hz frequency and AVR ±1%, so it stays stable behind generators, brownouts and weak grids. It also supports cold start, meaning it can power up from battery when there is no mains present at all — useful in the field conditions many of our integrator partners deploy in.
How long will it keep equipment running on battery?
Runtime scales with the connected load. The internal VRLA batteries (12 V / 7 Ah × 6) are sized for ride-through during outages and clean, safe shutdown rather than hours of continuous operation. For a precise runtime figure, give us the actual connected wattage of the room and we'll calculate it for your project.
Can I monitor the UPS over the network?
RS-232 and USB monitoring ship as standard, with software for Windows, Linux and Mac. For centralised monitoring across multiple rooms or a campus rack, add the optional SNMP / RS485 card so the UPS reports into your network management system. The front LCD also shows load, battery, mains status and faults locally.
Do you sell directly to schools or end users?
No. We only support system integrators and project companies. We never contact your end clients or sell to them directly — your project and your customer relationship stay entirely yours. We supply the equipment, the engineering support and the documentation; you keep the client. We also offer OEM / ODM branded supply across the product line, including the T-PWR power range, so you can deliver a single-brand system.
Specify With Confidence

Ready to Add the T-UPS-3KT to Your Project?

Tell us the equipment you're protecting and we'll reply within 24 hours with pricing, sizing and documentation. System integrator enquiries only.

Request a Quote — T-UPS-3KT See the Full Solution
