Smart Podium — Touchscreen Lectern for Classrooms & Conferences
An all-in-one digital podium with a built-in touchscreen computer, dual microphones and electric lift. Runs Windows and Android, casts to the room display, and lets the presenter control everything from the podium.
Four podiums, one platform
All four T-PDM models share the same Full HD touchscreen, dual-system computer and rugged build. Choose the form factor that fits the room.
The presenter's control hub

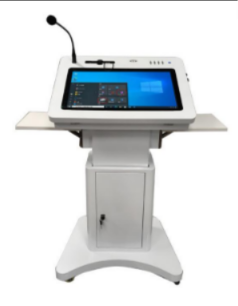

The T-PDM smart podium (also called a smart lectern) is an all-in-one presenting station with a built-in touchscreen computer, dual gooseneck microphones and full connectivity. The teacher or speaker runs slides, annotates, controls audio and casts to the room's interactive flat panel — all from the podium, with no separate laptop.
It runs Windows 10 Pro alongside Android, with configurable memory and storage, and a rugged steel body topped with explosion-proof glass for daily institutional use.
Every unit is CE / FCC / RoHS certified and available for OEM customisation from 10 units.
- All-in-one touchscreen21.5″ or 27″ 10-point capacitive Full HD
- Windows + AndroidBuilt-in PC (Win 10 Pro), no separate laptop
- Electric lift / angleHeight 90–110 cm or screen angle 0–25° (by model)
- Dual gooseneck micsIndependent switches, clear pickup & amplification
- Wired + wireless networkDual-band WiFi + RJ45 gigabit
- External audio outHDMI / XLR to speakers, mic-link support
- Cast & annotateCast to the IFP and annotate live, synced to the big screen
- Rugged institutional build1.2 mm steel + 3.5 mm tempered glass (Mohs ≥7)
Full technical specifications
Shared across all models. Form-factor differences (lift, angle, dual-screen) are shown in the model cards above.
| Operation screen | 21.5″ or 27″ (dual-screen model adds a 43″ front display) |
| Aspect ratio | 16:9 |
| Resolution | 1920 × 1080 (Full HD) |
| Brightness | 350 cd/m² |
| Touch | 10-point capacitive |
| Surface protection | 3.5 mm tempered explosion-proof glass (Mohs ≥ 7) |
| Operating system | Android / Windows 10 Pro (dual system) |
| RAM | 4 GB / 8 GB / 16 GB / 32 GB |
| Storage | 128 GB / 256 GB / 512 GB / 1 TB / 2 TB |
| Dual-screen model | Integrated Intel Core i5, 8 GB + 128 GB (per datasheet) |
| Network | Dual-band WiFi + RJ45 gigabit LAN |
| Microphones | Dual gooseneck microphones with independent switches |
| Audio / video output | HDMI output + XLR (cannon) connector for external speakers; mic-link support |
| Ports | HDMI, USB, LAN — full list: datasheet available on request |
| Body material | 1.2 mm cold-rolled steel, metal baked-paint finish |
| Colour | Matte black / white (customisable) |
| Power | 110–240V wide voltage |
| Height adjustment | 90–110 cm (electric lift, 21.5″ standard & folding) |
| Angle adjustment | 0–25° (27″ angle-adjustable model) |
| Certifications | CE · FCC · RoHS |
| Warranty | 2 years from shipment date |
| Dimensions & weight | Datasheet available on request |
The control point of a complete room
The T-PDM podium drives and pairs with the rest of the Tralltech range:
Designed into our solutions
The teacher's control hub
One touchscreen podium to run lessons, annotate and cast to the classroom display — no laptop or tangle of cables at the front of the room.
Explore the Smart Classroom solution →Podium for halls & boardrooms
A professional presenting station for conference halls, with a front info display option and dual mics for amplified rooms.
Explore the Video Conference solution →Frequently asked questions
What is a smart podium?
A smart podium, also called a smart lectern, is an all-in-one presenting station with a built-in touchscreen computer, microphones and connectivity. The Tralltech T-PDM lets a teacher or speaker run slides, annotate, control audio and cast to the room display from the podium itself — without a separate laptop.
Does the smart podium run Windows, or do I need a separate PC?
The T-PDM has a built-in computer that runs Windows 10 Pro alongside Android, so no separate laptop is needed. Memory and storage are configurable from 4GB to 32GB RAM and 128GB up to 2TB, letting an integrator match the build to the project.
What sizes and configurations of smart podium are available?
The T-PDM comes in four configurations: a 21.5-inch standard electric-lift model, a 21.5-inch folding model, a dual-screen model that adds a 43-inch front display, and a 27-inch angle-adjustable model. All use a 10-point capacitive Full HD touchscreen.
Can the podium height or screen angle be adjusted?
Yes, depending on the model. The standard and folding 21.5-inch models have an electric lift adjustable from 90 to 110 cm, and the 27-inch model has a screen angle adjustable from 0 to 25 degrees. The dual-screen model is a fixed-height design.
Does it connect to the interactive flat panel and external speakers?
Yes. The T-PDM has an HDMI output and an XLR connector to drive an interactive flat panel and external speakers, plus dual-band WiFi and a gigabit LAN port. The presenter can cast content to the big screen and run audio and mic-link from the podium.
Does the smart podium have microphones built in?
Yes. The T-PDM models include dual gooseneck microphones with independent switches and an audio processing module for clear pickup and amplification, which suits larger classrooms and halls.
Add a smart podium to your next project
Request a sample, get integrator pricing, or ask our engineers which model suits the room. We respond within 24 hours.
Guangzhou Tralltech Technology Co., Ltd. is a smart classroom and video conference room solution provider, manufacturing most of our hardware in-house and serving system integrators in 70+ countries since 2012.
Last reviewed: May 2026 · Tralltech Technical Team
